Würth Elektronik Micro & Micro-Miniature Coaxial Connectors
Würth Elektronik WR Micro Coaxial Connectors (WR-MCX) and WR Micro-Miniature Coaxial Connectors (WR-MMCX) feature snap-on coupling for fast and easy connection. These Würth connectors offer 50Ω impedance and broadband capability up to 18GHz. The wide range of products includes PCB connectors to cable connectors in different gender, orientation, and mounting types. The WR-MCX connectors are suitable for miniature applications, considering the size, weight, and performance of these connectors.
The WR-MMCX connectors are approximately 30% smaller compared to the MCX connectors. These connectors are suitable for applications where the smallest design needs to be achieved. The WR-MMCX connectors exhibit the same impedance and frequency range as the WR-MCX connectors and are available in straight and right-angled configurations for PCB cable connectors.
Features
- Micro Coaxial Connectors (WR-MCX)
- Interface in accordance with IEC 61169-36
- 50Ω for frequency range up to 6GHz
- Snap-on coupling mechanism for fast and easy connection
- High durability up to 500 cycles
- Micro-Miniature Coaxial Connectors (WR-MMCX)
- Interface in accordance with IEC 61169-52
- Size reduction for limited space on the design
- 50Ω for frequency range up to 6GHz
- Snap-on coupling mechanism for fast and easy connection
- High durability up to 500 cycles

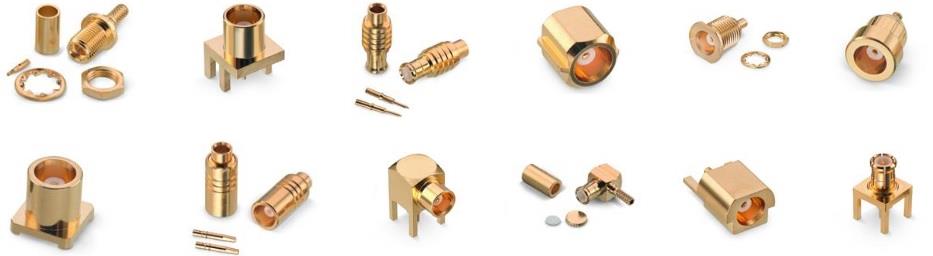

Product Overview
