Murata Power Solutions MEE1 Isolated 1W Single-Output DC/DC Converters
Murata Power Solutions MEE1 Isolated 1W Single-Output DC/DC Converters are PCB mounted modules designed for applications requiring isolated low-power distributed supply. The input voltage range is 3.3VDC to 24VDC with an output voltage range of 3.3VDC to 15VDC. Typical efficiency is 76% to 87%. MEE1 is available with PCB mounting in industry-standard SIP 4-pin and DIP 8-pin pinout formats.
Features
- Operation to zero load
- Single isolated output
- 1kVDC isolation
- Efficiency up to 87% typical
- -40°C to +85°C wide temperature performance at a full 1W load
- Power density from 1.305W/cm3
- Industry standard pinout
- 3.3V, 5V, 12V, 15V, and 24V input
- 3.3V, 5V, 9V, 12V, and 15V output
- Custom solutions available
- Pin compatible with LME, NME, NKE, and NML series'
- PCB mounting

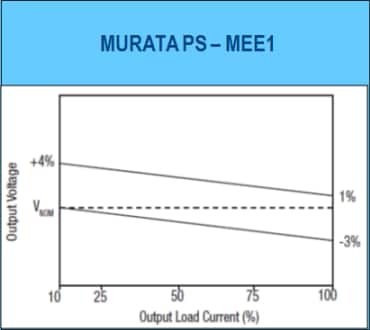

MEE1 Load Line

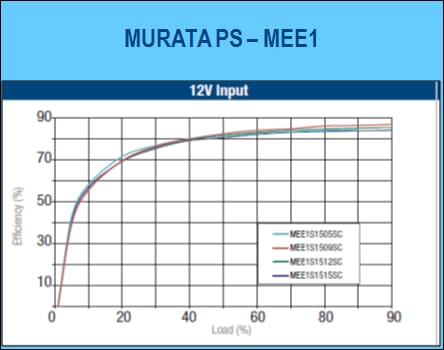

MEE1 Efficiency
Published: 2012-09-18
| Updated: 2022-03-11
