Bourns 1110 Series High Current Chokes
Bourns 1110 Series High Current Chokes feature a very high current capacity, low Direct Current Resistance (DCR), and fixed lead spacing. These chokes are made up of epoxy-coated ferrite bobbin core and VW-1 rated shrink tubing to cover the winding. The 1110 series high current chokes are self-leaded and come with a polyester magnetic wire and a center hole for mechanical mounting. These chokes operate from -55°C to 105°C temperature range and are RoHS compliant.
Features
- Very high current capacity
- Low Direct Current Resistance (DCR)
- Epoxy-coated ferrite bobbin core
- VW-1 rated shrink tubing to cover winding
- Self-leaded
- Fixed lead spacing
- Center hole for mechanical mounting
- Dielectric withstanding voltage:
- 2500Vrms terminal to shrink tube cover
- 1000Vrms terminal to core
- -55°C to 105°C operating temperature range
- Polyester magnetic wire 155°C rated
- RoHS compliant

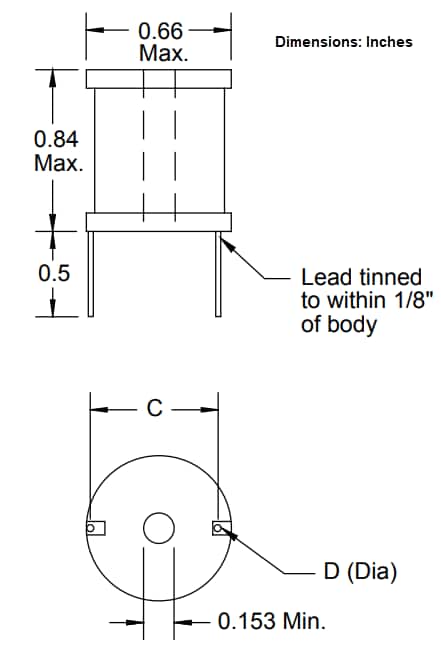

Dimension Diagram
